VIVE TLL

Coaches size matters. That’s why we offer our Vive with extra length of 11,2 m and a capacity of from 45+1 up to 47+1 seats. The configuration of the luggage compartment (7,5 m3) makes the Vive TLL a perfect all-rounder for intercity and touristic applications.

Cummins ISB6,7l (EURO 6), equipped with either manual or automatic ZF gearbox with intarder and Konvekta or Eberspächer air condition serve all purposes the bus can be used for.

Specification

GENERAL
Certification standard ECE R85
Dimensions (LxWxH) 11.200 x 2.460 x 3.235 mm
Seat configuration 45+1+1
Wheel base 6.000 mm
Gross vehicle weight (GVW) 16.000 kg
Empty weight 9.840 kg
Luggage compartment capacity 7,5 m³
DRIVE LINE
Engine, standard MAN D0836 LOH 72, Euro 6, 6,9 l
Engine type Four stroke water-cooled diesel engine with commonrail injection
Power 213 kW/ 290 hp @ 2.300 r/min
Torque 1.100 Nm @ 1.200-1.800 r/min
Transmission, standard ZF Ecoshift S6 manual, in-tarder
– Optional ZF Ecolife GAP1200 retarder
Front axle ZF RL 75, independent wheel suspension
Rear axle ZF A132, rigid, driven
Fuel Tank Capacity 230 l
BODY
Structure Monocoque
Material stainless steel structure and body
Painting 2-component HQ paint
Glasses Laminated safety glass / double glass
SAFETY & ELECTRONICS
ABS Wabco / Knorr
ESR Wabco / Knorr
ACC Bosch / Knorr
ECAS Wabco
CAN Bus SAE J1.939
Rear view camera Type Waeco
EQUIPMENT
Passenger seats ISRI Irati CL
Driver’s seat ISRI
Air condition Eberspracher AC 520 IV, Konvekta
Heating Eberspracher HYDRONIC 30
Luggage racks Prima Venus
Power plugs 24V x4
HiFi system Blaupunkt

Exterior

Interior

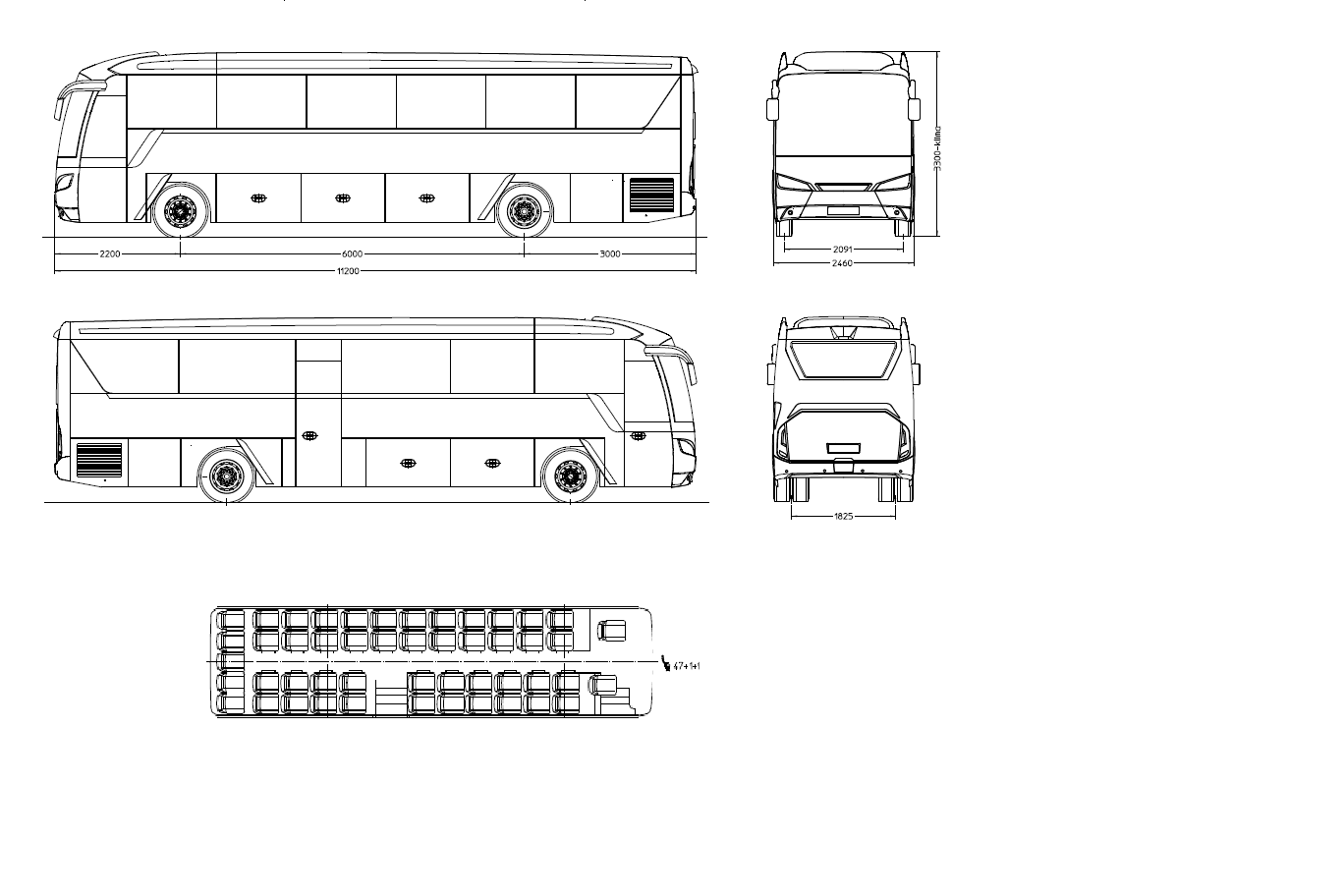

Layout

Options

  • Auxiliary AC/heater for driver’s area
  • ZF automatic gearbox w. intarder
  • Reversing video system
  • Parking sensors
  • Central locking system
  • Navigation system
  • Video system with 2 LCD screens
  • Additional 12V plugs
  • Coffee machine
  • Toilet
  • Various tire brand
  • Kitchen
  • Metallic paint
