eVIVAIR
eVIVAIR airport bus, where design, function and comfort are combined in an economic working machine. Our VIVAIR2 series of airport buses include 3 basic types as well as a VIP version and offers a large variety of options all satisfying IATA and airport safety standards.
Specification

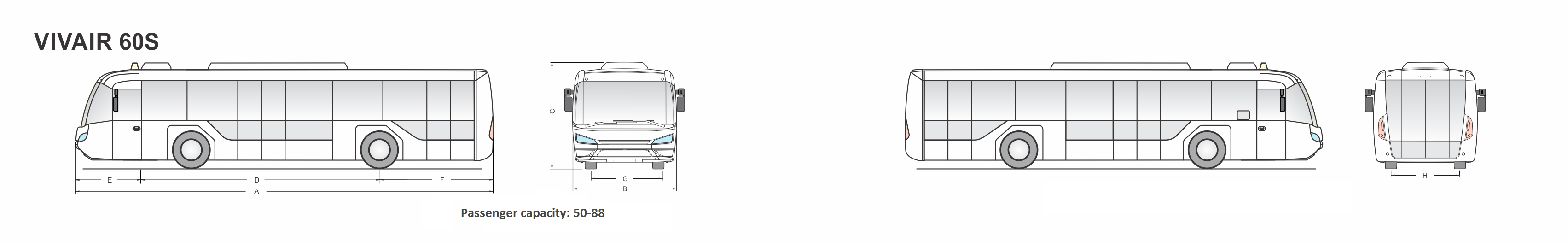

TECHNICAL DATA | VIVAIR 60S | VIVAIR 88W | VIVAIR 104WL |
Length (mm) | 11.946 | 13.283 | 14.720 |
Width (mm) | 2.750 | 3.170 | 3.170 |
Height with A/C (mm) | 3.000 | 3.000 | 3.000 |
Front Overhang | 3.270 | 3.270 | 3.270 |
Rear Overhang | 3.240 | 3.240 | 3.240 |
Wheel Base (mm) | 5.436 | 6.773 | 8.210 |
Wheel track (Front) | 2.146 | 2.146 | 2.156 |
Wheel track (Rear) | 2.204 | 2.538 | 2.538 |
Angle of Approach / Departure | 4 / 4 | 4 / 4 | 4 / 4 |
Turning Radius | 11.300 | 13.380 | 15.300 |
Curb Weight (kg) | 11.600 | 13.000 | 13.450 |
Tire Model | 315/80 R22,5 | 385/65 R22,5 | 425/65 R22,5 |
Floor | Non slipery | Non slipery | Non slipery |
Driver cabin |
Led Lights Air conditioned Heating Ergonomic seat, Safety belt Separated from Passenger area *Upgrade for co driver Seat |
Led Lights Air conditioned Heating Ergonomic seat, Safety belt Separated from Passenger area *Upgrade for co driver Seat |
Led Lights Air conditioned Heating Ergonomic seat, Safety belt Separated from Passenger area *Upgrade for co driver Seat |
PASSENGER CAPACITY | VIVAIR 60S | VIVAIR 88W | VIVAIR 104WL |
4 Passengers / m2 | 74 | 104 | 120 |
Standing height, inside (mm) | 2.380 | 2.380 | 2.380 |
Floor height (mm) | 350 | 350 | 350 |
With kneeling (mm) | 280 | 280 | 280 |
Seating (+8 wheel arch seats) | 5 (+8) | 6 (+8) | 6 (+8) |
Audio Equipment |
RADIO/CD/DVD/USB 8x Speakers 1x Microphone in Driver Cabin 1x Microphone in Passenger Area |
RADIO/CD/DVD/USB 8x Speakers 1x Microphone in Driver Cabin 1x Microphone in Passenger Area |
RADIO/CD/DVD/USB 8x Speakers 1x Microphone in Driver Cabin 1x Microphone in Passenger Area |
Passenger area |
Led lights Air conditioned Heating |
Led lights Air conditioned Heating |
Led lights Air conditioned Heating |
Max. Paassengers Doors | 6 | 6 | 6 |
Passenger door Width (mm) | 1.350 | 1.350 | 1.350 |
Passenger door Heigh (mm) | 2.157 | 2.157 | 2.157 |
DRIVELINE | ALL MODELS |
Driveline |
Motor IMPS – MD Mechanical output: 250 kW Mechanical output torque: 2.800 Nm |
Electric |
24 V 2x low maintenance batteries 12 V / 225 Ah Electric main switch Mechanical battery isolator switch |
Battery system |
Nominal Voltage: 614,4 V Operating Voltage: 480 V DC – 700 V DC Capacity: 216 Ah Energy: 141 kWh Battery type: Lithium Iron Phosphate |
