VIVAIR 104WL

VIVAIR 104WL, airport bus where design, function and comfort combined in an economic working machine. Our VIVAIR2 series of airport buses include 3 basic types as well as a VIP version and offers a large variety of options all satisfying IATA and airport safety standards.

Powered by a powerful engine, equipped with automatic gearbox and retarder, the VIVAIR2 has been a reliable partner at airports around the world for many years. An engine driven air condition system keeps heads cool even at the hottest destinations around the world.

Specification

VIVAIR Airport Buses, Type: 104WL

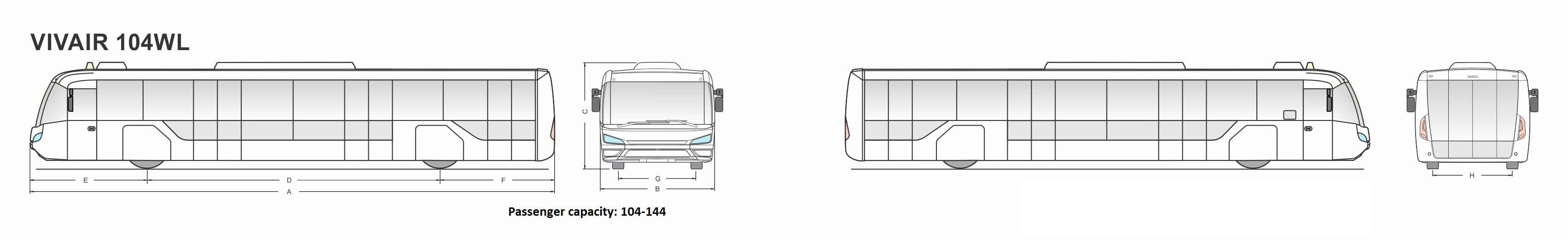

Dimensions [mm]
Overall Length (OL) 14.720
Overall Width (OW) 3.170
Height with A/C (OH) 3.100
Passenger capacity (according to different standards) 104-120
Drive train
Engine Type 1 MAN, EURO VI
Engine Type 2 DF CUMMINS D6.7EVIE260B, 6 Cylinder, EURO VI air compressor capacity over 12Mpa
Gearbox

Automatic, Voith Diwa 851.3E, MAN

Automatic transm. Allison T270R, CUMMINS (without retarder function)
Drive axle

Kessler LT51PL377, planetary rigid, driven & steered

Front axle

  • Chongqing Dajiang
  • Kessler

Rear Axle

  • Qingdao YUEK – Independent
  • Kessler
Steering ZF steering pump & column, inclination & height adjustable

  • Hydraulic assistance power steering unit model BOSCH 8098
  • Steering wheel dia. 480 mm
  • Height and inclination adjustable
  • With driving assistance hydraulic cylinder

Steering Pump: Together with engine, capacity over 24 Mpa
Brake system Dual circuit brake, service/security/parking brake

  • Disc brake, Service brake, security brake Parking
  • ABS-WABCO
  • WABCO Brake system: Brake/accelerator pedal; valves
Suspension Air bellow suspension, with levelling & kneeling system

  • All axles with air suspension, lifting-lowering system vehicle

Adjustable pushing rod, with axle protection support
Wheels & tires 4x 13.00 X 22.5 ET120; 4x 425/65 R22.5

  • Rim wheels size: 75 x 22.5 ET120
  • Tires’ size: 425/65 R22.5 (Pirellli)
Equipment
Doors

4 or 6 hydraulic double swing doors (2/3 on each side); Rear door as option

Number of passenger doors

  • 6 side doors with anti-pinch function

Drivers cabin door

Driver door and co-driver door heated power lifter windows, with approach switch
Air condition

Eberspaecher Suetrak 38-44 kW cooling capacity

A/C unit for passenger compartment

  • 44 KW, compressor belt driven（Compressor common）
  • VALEO RG500-47kw

A/C unit for driver compartment

VALEO RG450
Seating

ISRI driver’s seat & co-driver’s seat, various seat configurations for passengers

Driver seat
• Air suspension Driver’s seat with 3-point seatbelt with Armrests
• Audible warning system if seat belt is not fastened
• GRAMMER
Co-driver seat
• Co-driver seat – STANDARD
Passenger Seats
• Front bench with 6 seats，removable seat cushion and back rest cushion
• 8 wheel housing seats，with cushions
• All seats wear/light/shock resistant under normal working conditions
Communication & HiFi CD/DVD/MPx radio; microphone & speakers, LED/LCD information displays etc.

  • Radio CD/DVD/USB 2-ZONE 24V
  • 8 x speakers
  • MP5/USB player with Announcement system
  • Brand: Tongda
  • 1 x microphone -goose neck in the drivers cabin
  • 1 x microphone in the passengers cabin
Options A large variety of options is available according to customer requirements

Exterior

Interior

Layout
